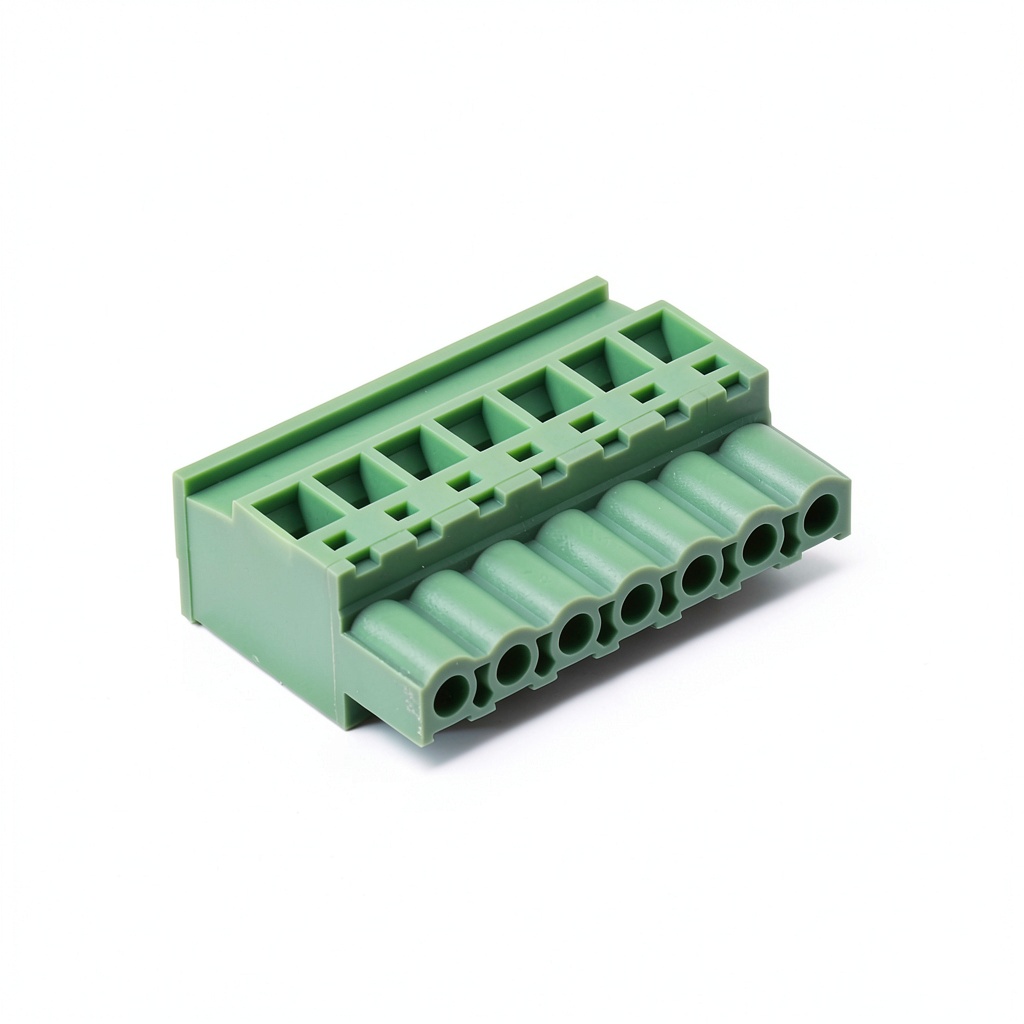

5.08mm 7-Pin Snap Plug Terminal KF2EDGKB-5.08-7P by Generic

Description

Product Overview

The KF2EDGKB-5.08-7P is a precision‑engineered snap‑plug terminal designed for demanding industrial electrical applications. Measuring exactly 5.08 mm between adjacent pins, this single‑row, seven‑pin connector provides a compact footprint while delivering robust mechanical and electrical performance that meets the expectations of modern automation equipment. Constructed from a high‑grade copper alloy, each contact is plated with a thin layer of tin to enhance corrosion resistance, reduce oxidation, and ensure consistent conductivity over the product’s entire service life. The terminal complies with IEC 60947‑1 standards and has been rigorously tested for a rated current of up to 10 A and a voltage rating of 250 V, making it suitable for a wide range of power and signal distribution tasks in both low‑voltage and medium‑voltage environments. Its plug‑in design allows for quick, tool‑free installation, reducing assembly time and minimizing the risk of wiring errors that can lead to costly rework. The compact 5.08 mm pitch enables dense packing on printed circuit boards, terminal blocks, and DIN‑rail mounting panels, which is essential for space‑constrained control cabinets, robotic controllers, and high‑density sensor arrays. The terminal’s robust housing is molded from a flame‑retardant polymer that meets UL94 V‑0 fire safety requirements, providing an extra layer of protection in harsh environments where fire resistance is a critical concern. In addition to its electrical characteristics, the terminal features a low insertion force of less than 1 N, a secure locking mechanism that prevents accidental disengagement, and a clear labeling system that aids in rapid identification during maintenance. The product is supplied as a single piece (1 pcs) and is identified by the part number KF2EDGKB‑5.08‑7P, ensuring easy inventory management and accurate ordering for original equipment manufacturers (OEMs), system integrators, and distributors worldwide. Extensive environmental testing, including humidity, vibration, and salt‑fog exposure, confirms the terminal’s suitability for marine and offshore installations, while compliance with RoHS directives guarantees an environmentally responsible solution.

Usage

This snap‑plug terminal is ideally suited for a variety of industrial settings where reliable, repeatable connections are critical to system uptime and safety. It is commonly used in programmable logic controller (PLC) modules, motor control centers, distributed control systems, sensor interfaces, and instrumentation panels where space is at a premium and fast, secure connections are required. The 5.08 mm pitch aligns perfectly with standard DIN‑rail mounting systems, allowing seamless integration into existing wiring harnesses and panel layouts without the need for custom adapters or additional hardware. Engineers appreciate the terminal’s ability to accommodate both solid and stranded wire sizes ranging from 0.5 mm² to 2.5 mm², providing flexibility for power, grounding, and signal lines across a broad spectrum of applications. In addition to traditional factory automation, the terminal performs well in renewable energy installations, such as solar inverter panels, wind turbine control units, and battery management systems, where vibration resistance, temperature stability, and long‑term durability are essential. Its low insertion force and secure locking mechanism make it a preferred choice for field service technicians who need to replace or upgrade components quickly without specialized tools, thereby reducing service time and labor costs. The terminal also meets the requirements of harsh environments, including temperature ranges from –40 °C to +85 °C, exposure to dust, occasional moisture, and mechanical shock, ensuring dependable operation in outdoor substations, marine applications, and mobile equipment. For applications that demand high reliability, the terminal can be paired with protective devices such as fuses, circuit breakers, and surge protectors, creating a comprehensive protection strategy that safeguards both the terminal and the connected circuitry. Installation guidelines recommend stripping the wire to a length of 3 mm, inserting the conductor fully into the contact slot, and confirming the audible click of the latch, which together guarantee a consistent and low‑resistance connection throughout the product’s lifespan.

Why Choose Us

Choosing the KF2EDGKB‑5.08‑7P means selecting a component that has undergone rigorous quality assurance processes at every stage of production. Each batch is inspected with automated optical inspection (AOI) and electrical testing to verify pin alignment, contact resistance, insulation integrity, and dimensional compliance. Our manufacturing facilities are ISO 9001 certified, and we maintain full traceability of raw materials from supplier to finished product, allowing us to quickly identify and address any potential issues. This commitment to quality translates into a terminal that delivers consistent performance, reducing the likelihood of premature failures, unexpected downtime, and the associated costs of field repairs. We also provide a comprehensive warranty that covers material defects for up to two years from the date of purchase, giving our customers confidence in the long‑term reliability of the part. In addition to the product itself, our technical support team is available to assist with design integration, offering detailed CAD libraries, wiring diagrams, application notes, and compliance documentation tailored to specific industry standards such as IEC, UL, and CSA. Fast shipping options, including same‑day dispatch for stocked items, and bulk pricing tiers further enhance the value proposition for manufacturers and distributors seeking to streamline their supply chain and reduce total cost of ownership. Our after‑sales service includes a dedicated helpline, online ticketing system, and on‑site engineering assistance for large projects, ensuring that any questions or challenges are resolved promptly and professionally. Sustainability is also a core focus; we source copper from certified recyclers and employ energy‑efficient manufacturing processes, helping our customers meet their own environmental goals while receiving a high‑performance component.

Key Features

• Compact 5.08 mm pitch enables high‑density mounting in tight panel spaces, allowing more connections per unit area without sacrificing performance.
• Seven‑pin single‑row design provides versatile wiring options for power distribution, signal routing, and grounding in a single, easy‑to‑install component.
• High‑grade copper alloy contacts with tin plating ensure low contact resistance, excellent conductivity, and long‑term corrosion resistance even in humid or salty environments.
• Flame‑retardant polymer housing meets UL94 V‑0 fire safety standards, offering additional protection against fire hazards in critical industrial installations.
• Comprehensive technical support, detailed documentation, and a two‑year warranty deliver peace of mind and reliable after‑sales service for engineers and procurement teams.

FAQ

What wire gauge sizes are compatible with this terminal?

The KF2EDGKB‑5.08‑7P supports wire cross‑sections from 0.5 mm² up to 2.5 mm², accommodating both solid and stranded conductors commonly used in industrial control circuits, motor drives, and sensor networks.

Is the terminal suitable for high‑temperature environments?

Yes, the terminal is rated for continuous operation from –40 °C to +85 °C, making it appropriate for applications that experience extreme temperature variations, such as outdoor substations, automotive control units, and aerospace equipment.

Can this terminal be used in safety‑critical systems?

The terminal complies with IEC 60947‑1 standards and has been tested for reliable contact performance, which qualifies it for use in many safety‑related control and monitoring applications, provided the overall system design meets the required safety integrity level (SIL) or performance level (PL) specifications.

How does the plug‑in mechanism work?

The plug‑in design features a spring‑loaded latch that secures the wire without the need for screws or tools. To insert a wire, simply align the conductor with the contact slot, push until the latch clicks into place, and verify that the wire is fully seated for a firm electrical connection.

What certifications and standards does this terminal meet?

In addition to IEC 60947‑1 compliance, the terminal meets UL94 V‑0 flame‑retardant requirements, RoHS restriction guidelines for hazardous substances, and has been tested for electromagnetic compatibility (EMC) to ensure minimal interference with nearby circuitry.
