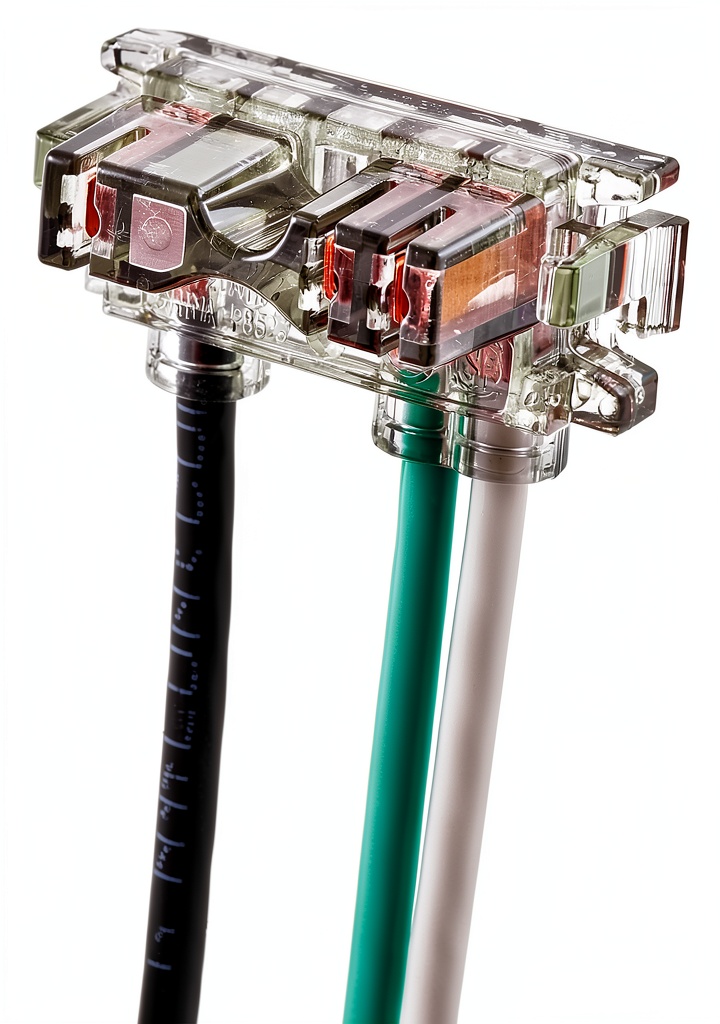

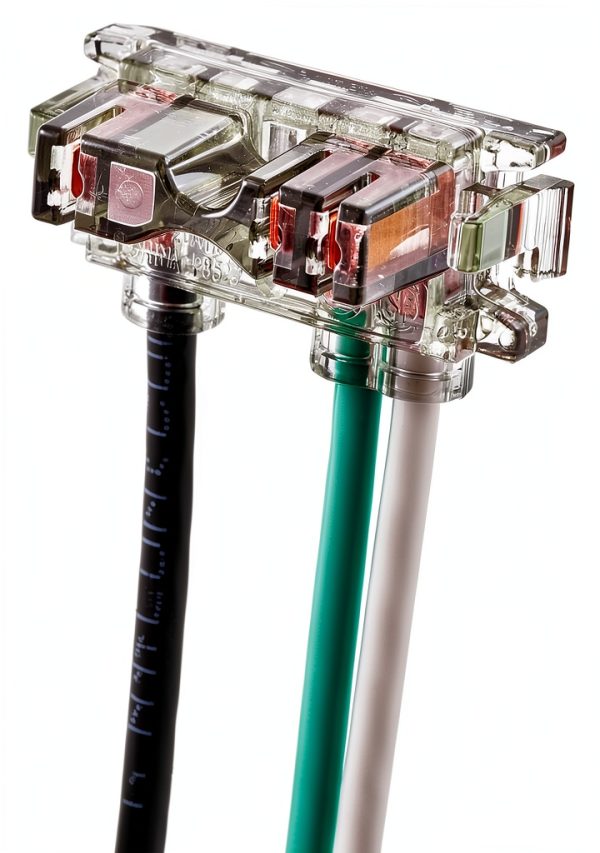

Connector HUBBELL Snap Plug – SNAP1RNA Series Switch, 1-Pack

Description

Product Overview

The HUBBELL SNAP1RNA connector belongs to the Snapconnect Series Switch family, offering a reliable snap‑plug solution for a wide range of industrial and scientific applications. Constructed from high‑impact engineered plastic, the connector provides excellent resistance to mechanical stress, chemicals, and temperature fluctuations commonly encountered in manufacturing environments. The SNAP1RNA model features a compact form factor that fits into tight conduit spaces while maintaining a secure locking mechanism that prevents accidental disengagement. With a rated voltage of 250 V and a current capacity of 10 A, this connector meets the stringent requirements of IEC standards for safety and performance. The product is supplied as a single unit, making it easy to stock for on‑demand repairs or new installations. Its design incorporates a low‑profile latch that can be engaged with a simple hand motion, eliminating the need for additional tools and reducing installation time. The connector’s color‑coded housing aids in quick visual identification, supporting efficient workflow in busy maintenance shops.

Usage

Designed for versatility, the SNAP1RNA connector excels in a variety of settings, including factory automation lines, HVAC systems, and control panels. Electricians and technicians can use it to terminate wiring harnesses, connect sensor arrays, or create modular junctions that can be reconfigured as system requirements evolve. Its snap‑plug mechanism is especially valuable in environments where downtime must be minimized; the connector can be installed or removed in seconds, allowing rapid troubleshooting and component replacement. The connector is also suitable for OEMs integrating it into custom equipment, as its standardized dimensions ensure compatibility with existing terminal blocks and wiring harnesses. When used in outdoor enclosures, the connector’s sealed design protects against moisture ingress, making it a reliable choice for outdoor lighting, irrigation control, and renewable energy installations. The product’s compliance with UL and CE markings assures users that it meets global safety standards, providing confidence for both domestic and international projects.

Why Choose Us

Choosing the HUBBELL SNAP1RNA connector means selecting a product backed by decades of engineering expertise and a commitment to quality assurance. Each unit undergoes rigorous testing for tensile strength, dielectric withstand, and environmental durability, ensuring that the connector performs consistently throughout its service life. HUBBELL’s extensive distribution network guarantees fast delivery and reliable stock availability, reducing lead times for critical projects. In addition, the company offers comprehensive technical support, including wiring diagrams, installation guides, and a dedicated helpline staffed by experienced engineers. Customers benefit from a warranty that covers manufacturing defects, reinforcing the brand’s confidence in the product’s longevity. By integrating this connector into your systems, you gain access to a proven solution that reduces maintenance costs, improves safety, and enhances overall system reliability.

Key Features

• High‑impact plastic housing resists cracks and chemical exposure for long‑term durability.
• Tool‑free snap‑plug design enables rapid installation and removal, saving labor time.
• Compact profile fits into confined spaces without sacrificing connection strength.
• Rated 250 V / 10 A meets IEC and UL standards, ensuring safe operation in demanding circuits.
• Dedicated HUBBELL technical support and warranty provide peace of mind and after‑sales assistance.

FAQ

What wire gauge sizes are compatible with the SNAP1RNA connector?

The SNAP1RNA is compatible with solid and stranded conductors ranging from 22 AWG to 12 AWG, allowing flexibility for both low‑current signal lines and higher‑current power distribution.

Can the connector be used in outdoor or wet environments?

Yes. The connector’s sealed housing provides an IP‑rated protection level that guards against moisture and dust, making it suitable for outdoor panels, irrigation controllers, and other wet‑location applications.

Is the connector reusable after removal?

Absolutely. The snap‑plug mechanism is designed for multiple cycles of insertion and removal without loss of performance, enabling reuse in maintenance or re‑configuration scenarios.

Does the connector require any special tools for termination?

No special tools are needed. The latch can be engaged and released with a simple hand motion, and the wire is secured by a built‑in clamping system that provides a firm grip.

What certifications does the SNAP1RNA hold?

The connector is UL listed, CE marked, and complies with IEC 60947‑5‑1 standards, confirming its suitability for commercial and industrial electrical installations worldwide.
